    WSRD DIY Package & BRP Engine Torque Specs

    Additional Misc. Engine Component Torque Specs:

    • Oil Pump Idler Gear Spacer Bolts (2 Total): 80in/lbs +/- 9in/lbs
    • Water Pump Idler Gear Spacer Bolt (1 Total): 80in/lbs +/- 9in/lbs
    • Oil Sump Rotor Assembly Cover Bolts (7 Total): 80in/lbs +/- 9in/lbs
    • Oil Sump Suction Tube Bolts (2 Total): 80in/lbs +/- 9in/lbs
    • Knock Sensor Mounting Bolt (1 Total): 17ft/lbs +/- 2ft/lbs
    • Camshaft Sensor Mounting Bolt (1 Total): 80in/lbs +/- 9in/lbs
    • Crankshaft Sensor Mounting Bolt (1 Total): 80in/lbs +/- 9in/lbs
    • Valve Cover Breather Fitting Mounting Bolt (1 Total): 80in/lbs +/- 9in/lbs
    • Oil Dip Stick Tube Mounting Bolt (1 Total): 62in/lbs +/- 7in/lbs
    • M18 "Large" Oil Drain Plug: 22ft/lbs +/- 2ft/lbs
    • M8 "Small" Oil Drain Plug: 133in/lbs +/- 18in/lbs
    • Starter Mounting Bolts (2 Total): 80in/lbs +/- 9in/lbs

    Additional Misc. Turbocharger Component Torque Specs:

    • Oil Pressure Sensor - Lower Turbocharger Feed Line Banjo Fitting: 106in/lbs +/- 9in/lbs
    • Upper Turbocharger  Feed Line Banjo Fitting: 106in/lbs +/- 9in/lbs
    • Exhaust Manifold to Cylinder Head Mounting Bolts (9 Total); Step A: 44in/lbs +/- 5in/lbs, Step B: 17ft/lbs +/- 2ft/lbs
    • Turbocharger Oil Drain Bolts (2 Total): 89in/lbs +/- 9in/lbs
    • Turbocharger Coolant Line Mounting Bolt (1 Total): 80in/lbs +/- 9in/lbs
    • Wastegate Mounting Bracket to Compressor Cover Mounting Bolts (2 Total): 80in/lbs +/- 9in/lbs
    • Wastegate Stud to Mounting Bracket Nuts (2 Total): 80in/lbs +/- 9in/lbs

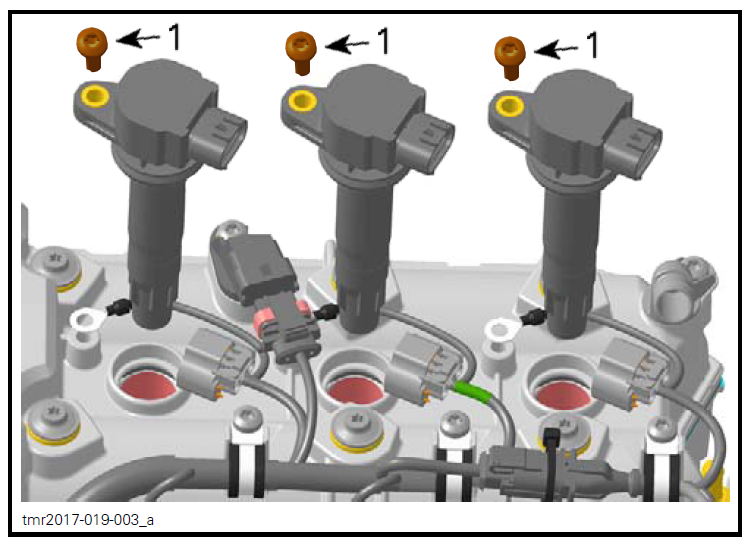

    BRP Ignition Coil Bolts

    BRP Ignition Coil Bolts

    Per the BRP Service Manual please follow the torque sequence for tightening your ignition coil retaining bolts (#1);

    ~ Step A: 80in/lbs +/- 9in/lbs

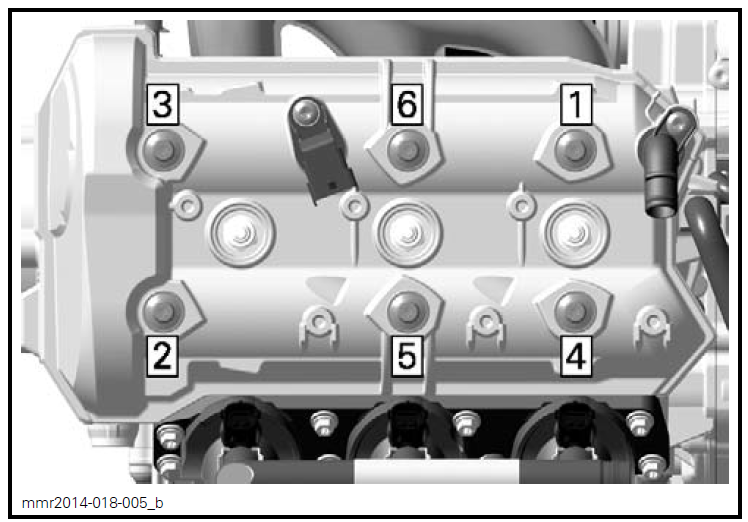

    BRP Valve Cover Bolts

    BRP Valve Cover Bolts

    Per the BRP Service Manual please follow the order sequence for tightening your valve cover bolts;

    ~ Step A: 80in/lbs +/- 9in/lbs
    ~ Step B: 80in/lbs +/- 9in/lbs

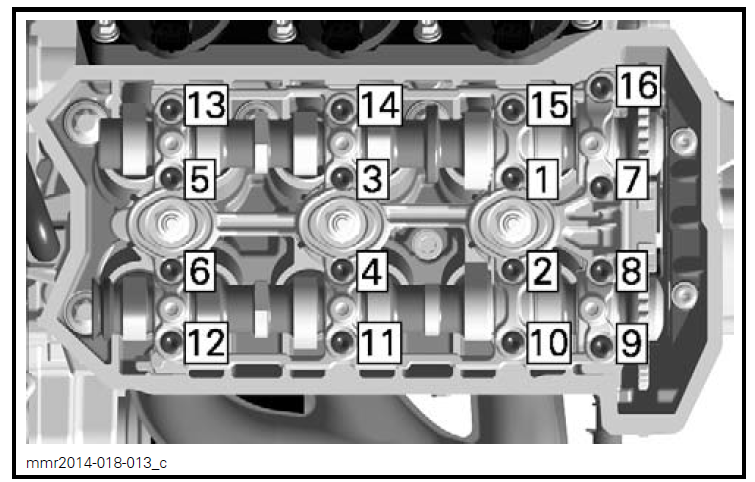

    BRP Camshaft Housing Bolts

    BRP Camshaft Housing Bolts

    Per the BRP Service Manual please follow the order sequence for tightening your camshaft housing assembly bolts;

    ~ Step A: 44in/lbs +/- 5in/lbs (Start at #4, #12, and #17 and continue clockwise)
    ~ Step B: 80in/lbs +/- 9in/lbs (Start at #1 and continue clockwise)

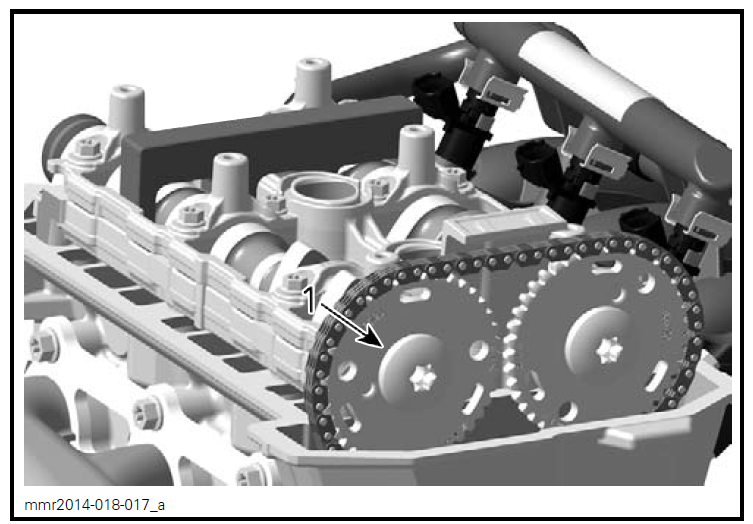

    BRP Camshaft Sprocket Bolts

    BRP Camshaft Sprocket Bolts

    Per the BRP Service Manual please follow the torque sequence for tightening your camshaft sprocket bolts (#1);

    ~ Step A: 37ft/lbs +/- 2ft/lbs

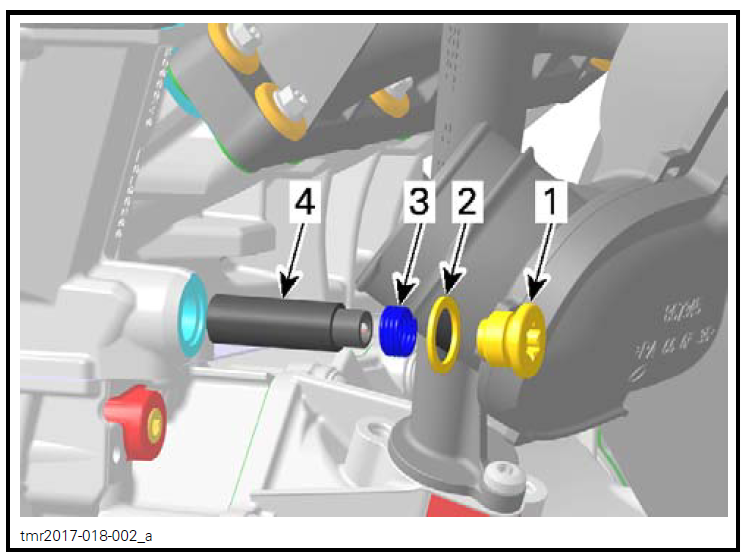

    BRP Timing Tensioner Plug

    BRP Timing Tensioner Plug

    Per the BRP Service Manual please follow the torque sequence for your tensioner plug (#1);

    ~ Step A: 150in/lbs +/- 18in/lbs

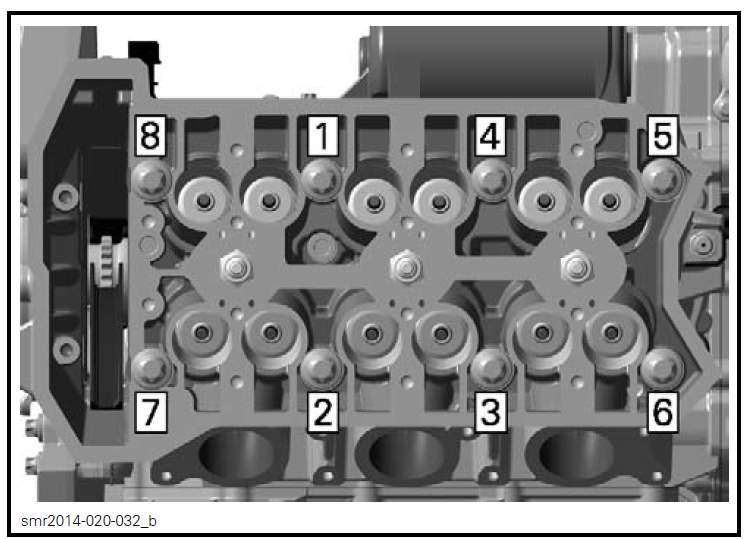

    BRP Cylinder Head Bolts

    BRP Cylinder Head Bolts

    Per the BRP Service Manual please follow the order sequence for tightening your cylinder head bolts;

    ~ Step A: 15ft/lbs +/- 1ft/lbs
    ~ Step B: 150 degrees +/- 5 degrees

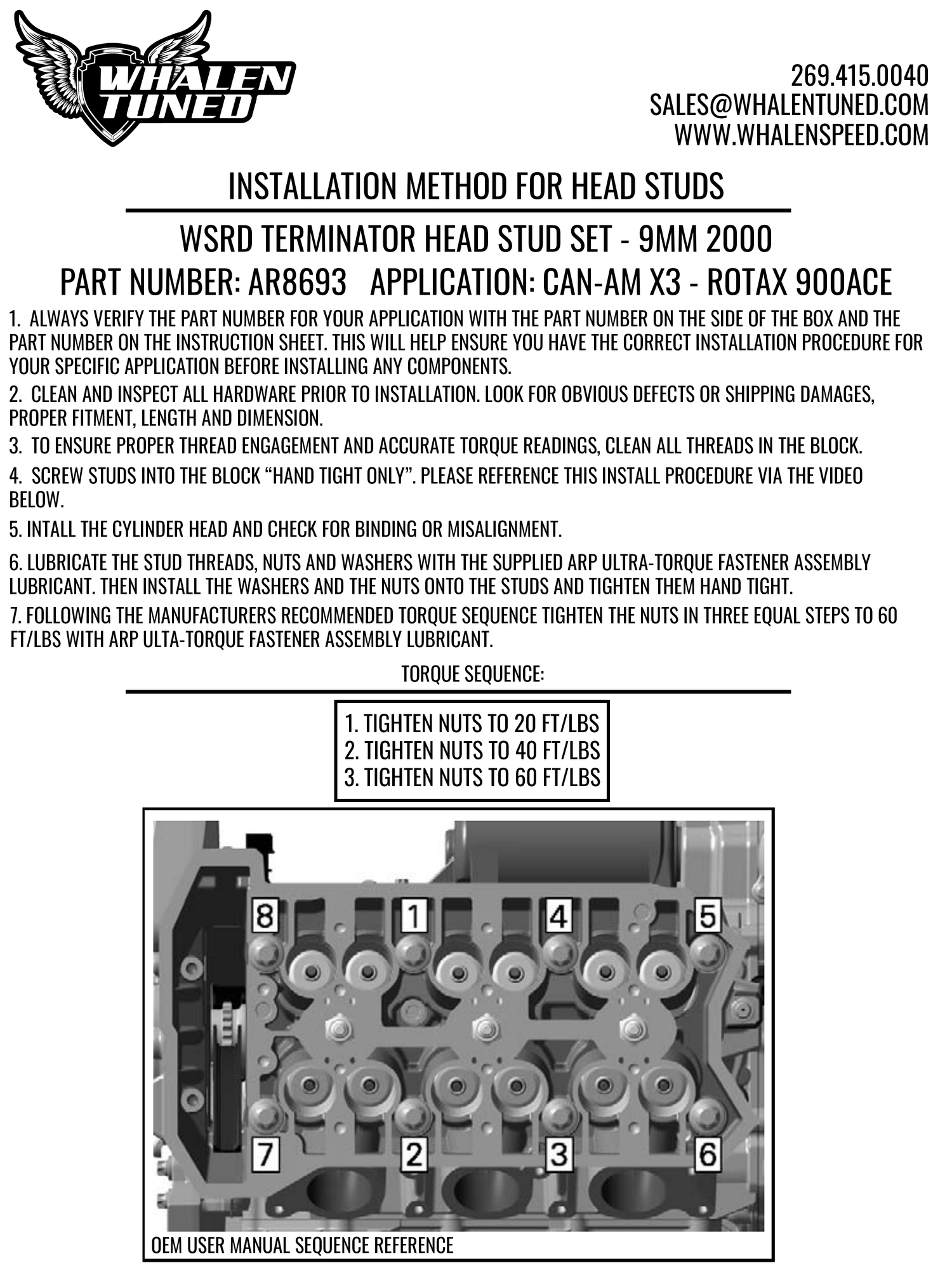

    WSRD 9mm Terminator Head Studs

    WSRD 9mm Terminator Head Studs

    Per the BRP Service Manual please follow the order sequence for tightening your WSRD Head Stud Set. Use the following torque sequence;

    Step A: 20 ft/lbs
    Step B: 40 ft/lbs
    Step C: 60 ft/lbs

    SHOP NOW

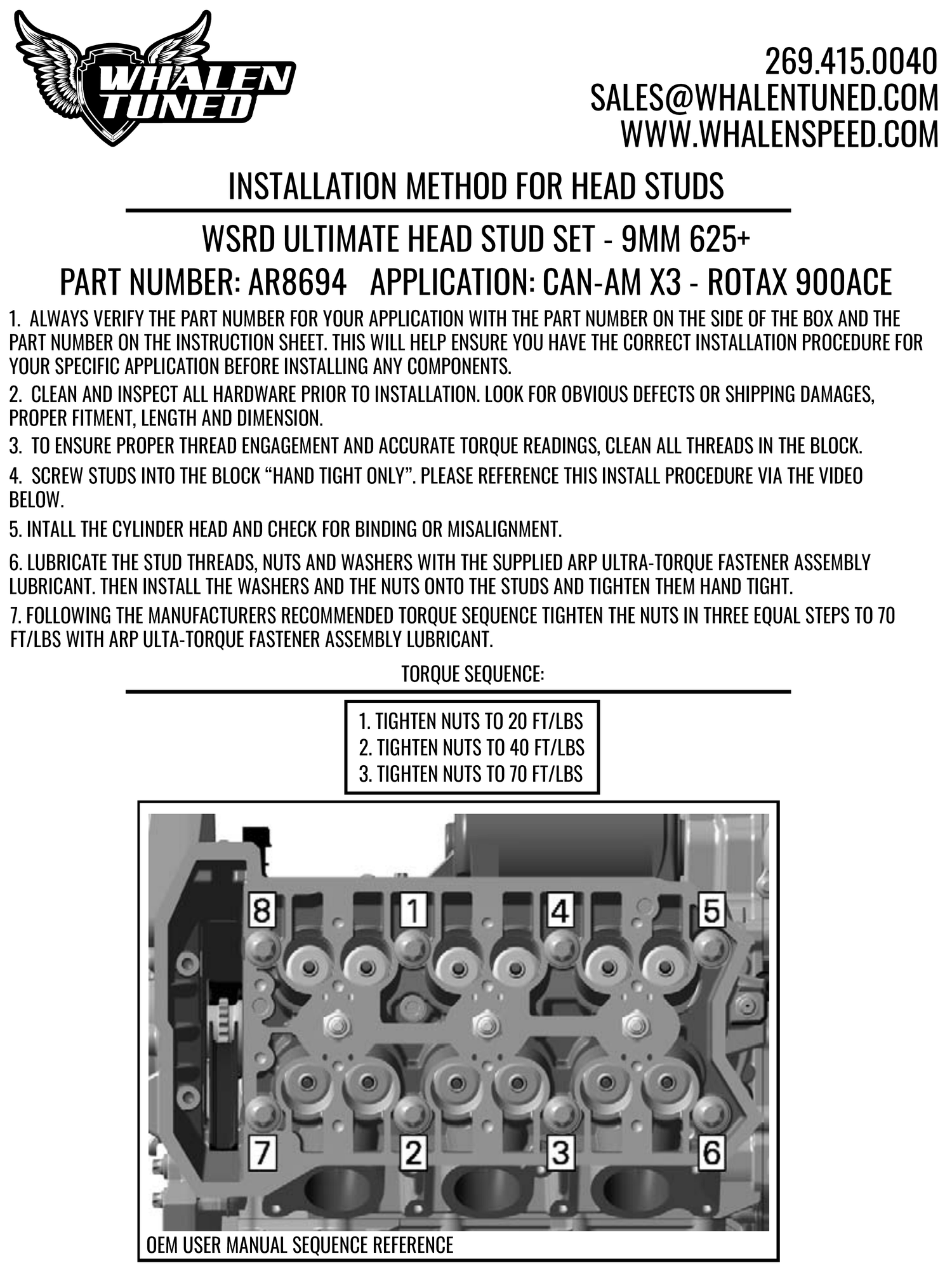

    WSRD 9mm Ultimate Head Studs

    WSRD 9mm Ultimate Head Studs

    Per the BRP Service Manual please follow the order sequence for tightening your WSRD Head Stud Set. Use the following torque sequence;

    ~ Step A: 20 ft/lbs
    ~ Step B: 40 ft/lbs
    ~ Step C: 70 ft/lbs

    Button

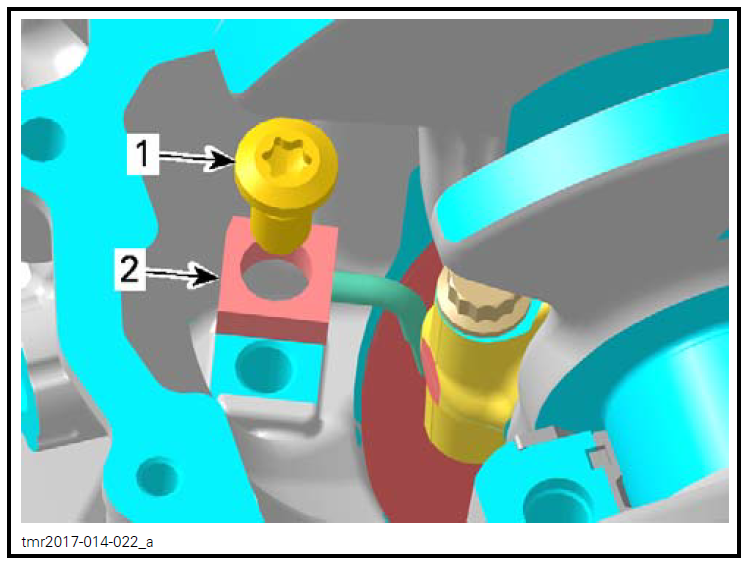

    BRP Oil Squirter Banjo Bolts

    BRP Oil Squirter Banjo Bolts

    Per the BRP Service Manual please follow the torque sequence for tightening your oil squirter banjo bolts (#1);

    ~ Step A: 168in/lbs +/- 18in/lbs

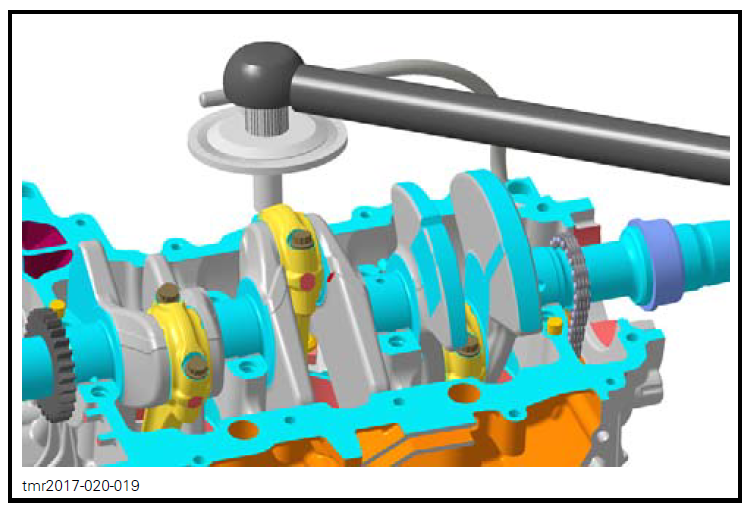

    BRP CONNECTING ROD BOLTS

    BRP CONNECTING ROD BOLTS

    Per the BRP Service Manual please follow the torque sequence for tightening your connecting rod bolts.

    ~ Step A: 106in/lbs +/- 18in/lbs
    ~ Step B: 70 degrees +/- 5 degrees

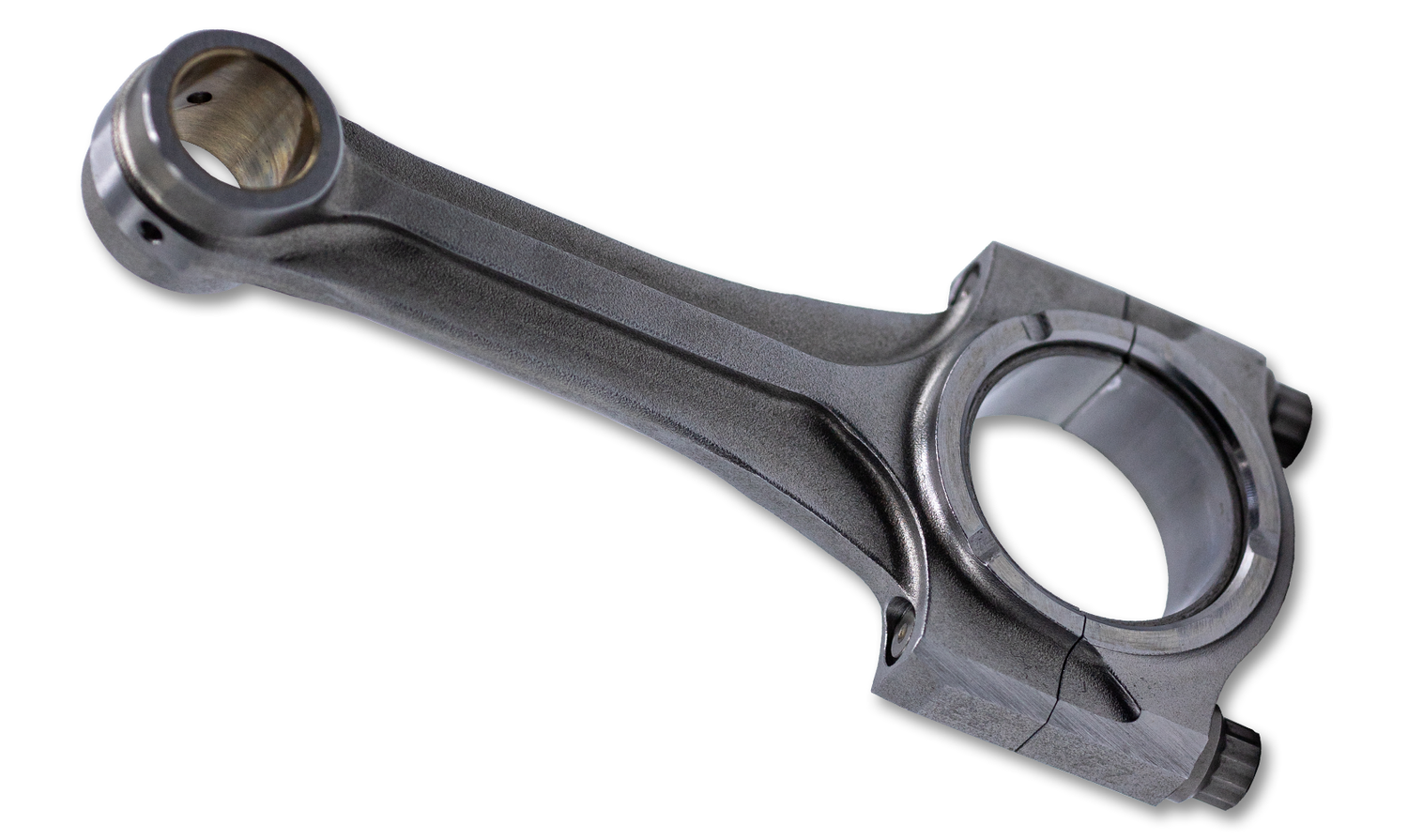

    WSRD Terminator Connecting Rods

    WSRD Terminator Connecting Rods

    When installing our connecting rod, please use the following torque sequence using the supplied engine fastener lube; (ARP 2000 Connecting Rod Bolt)

    Step A: 20 ft/lbs
    Step B: 35 ft/lbs

    SHOP NOW

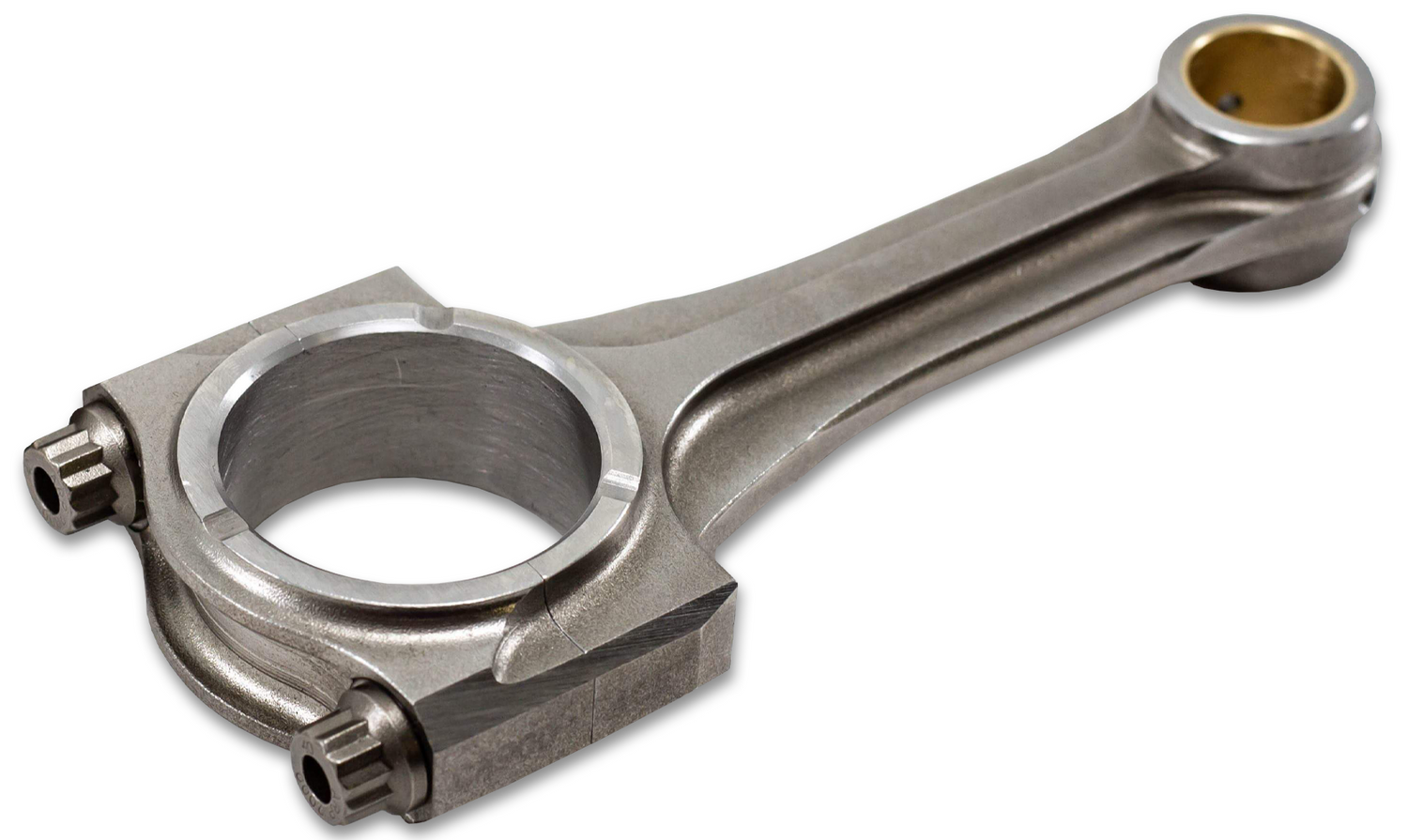

    WSRD Ultimate Connecting Rods

    WSRD Ultimate Connecting Rods

    When installing our connecting, please use the following torque sequence using the supplied engine fastener lube; (ARP 625+ Connecting Rod Bolt)

    ~ Step A: 20 ft/lbs
    ~ Step B: 40 ft/lbs

    SHOP NOW

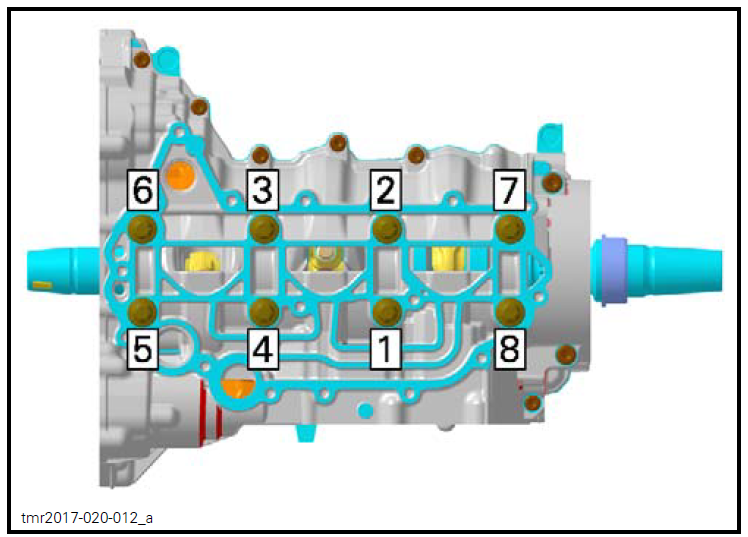

    BRP Engine Block Main Bolts

    BRP Engine Block Main Bolts

    Per the BRP Service Manual please follow the order sequence for tightening your main bolts.

    ~ Step A: 15ft/lbs +/- 1ft/lbs
    ~ Step B: 150 degrees +/- 5 degrees

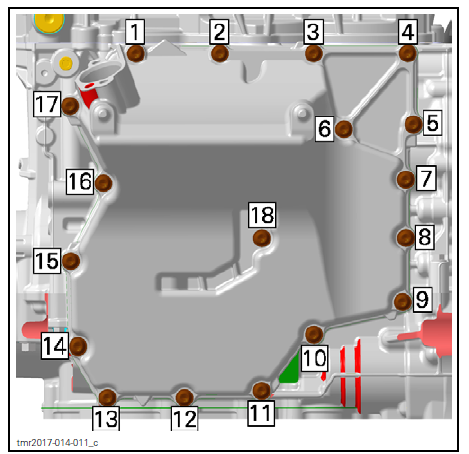

    BRP Oil Sump Bolts

    BRP Oil Sump Bolts

    Per the BRP Service Manual please follow the order sequence for tightening your oil sump cover bolts when replacing the oil sump cover gasket.

    ~ Step A: 44in/lbs +/- 5in/lbs (Start at #1)
    ~ Step B: 80in/lbs +/- 9in/lbs (Follow numbered sequence)

    BRP PTO COVER BOLTS

    BRP PTO COVER BOLTS

    Per the BRP Service Manual please follow the order sequence for tightening your PTO cover bolts when replacing the PTO cover gasket.

    ~ Step A: 17ft/lbs +/- 2ft/lbs

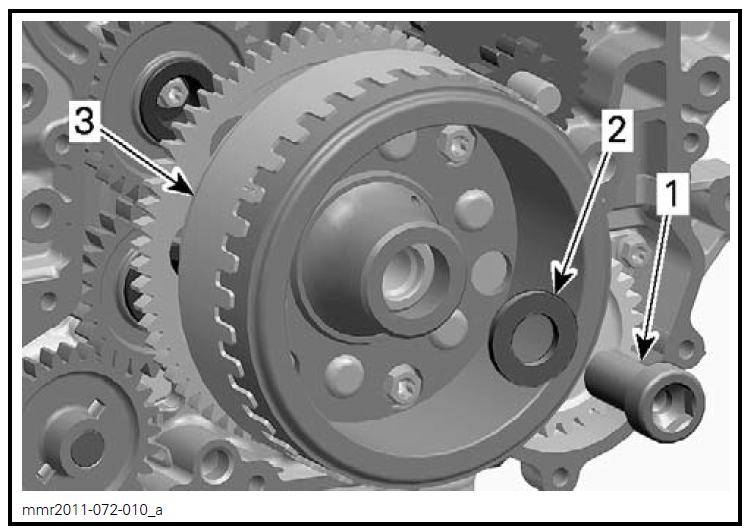

    BRP Flywheel to Crankshaft Bolt

    BRP Flywheel to Crankshaft Bolt

    Per the BRP Service Manual please follow the torque sequence for tightening your flywheel bolt (#1) to install your flywheel to crankshaft;

    ~ Step A: 111ft/lbs +/- 7ft/lbs

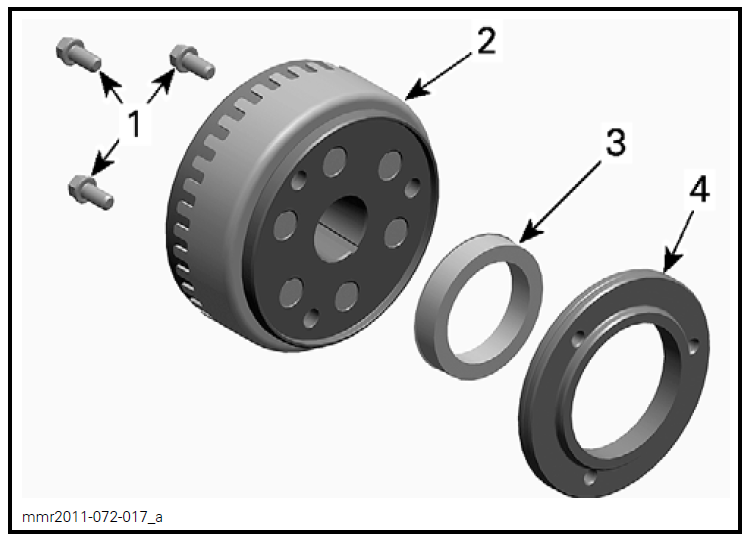

    BRP Sprag Clutch to Flywheel Bolts

    BRP Sprag Clutch to Flywheel Bolts

    Per the BRP Service Manual please follow the torque sequence for tightening your sprag clutch to flywheel bolts (#1);

    ~ Step A: 22ft/lbs +/- 1ft/lbs

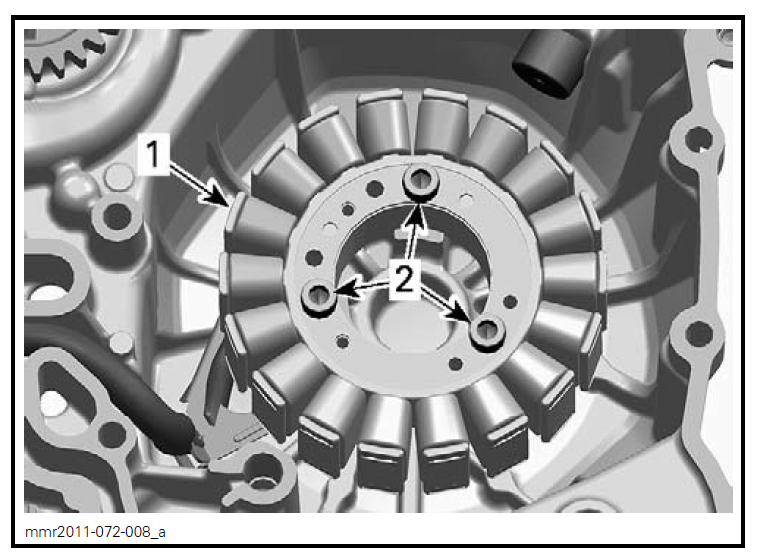

    BRP Magneto to Stator Cover Bolts

    BRP Magneto to Stator Cover Bolts

    Per the BRP Service Manual please follow the torque sequence for tightening your magneto to stator cover mounting bolts (#2);

    ~ Step A: 80in/lbs +/- 9in/lbs

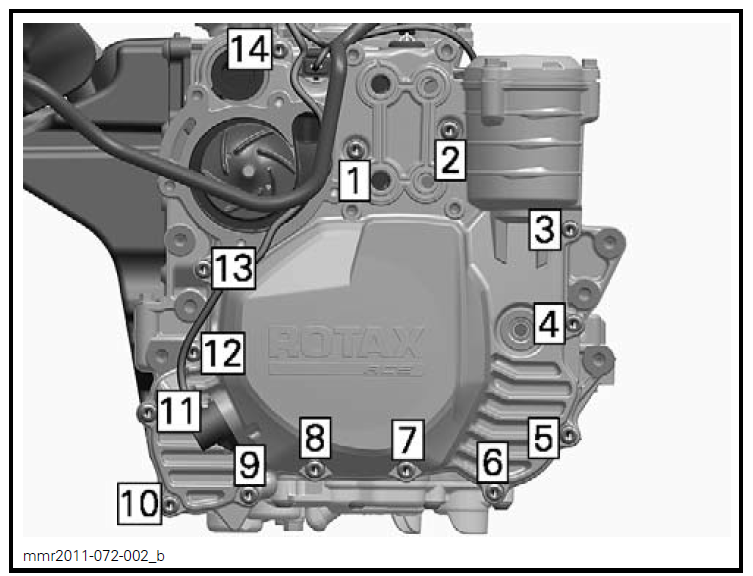

    BRP Stator Cover Bolts

    BRP Stator Cover Bolts

    Per the BRP Service Manual please follow the order sequence for tightening your stator cover bolts when replacing the stator cover gasket.

    ~ Step A: 80in/lbs +/- 9in/lbs

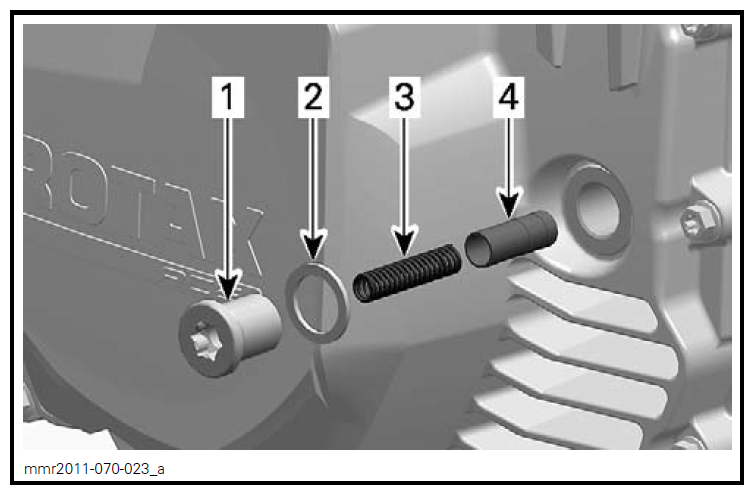

    BRP Oil Pressure Regulator Plug

    BRP Oil Pressure Regulator Plug

    Per the BRP Service Manual please follow the torque sequence for tightening your oil pressure regulator plug (#1);

    ~ Step A: 150in/lbs +/- 18in/lbs

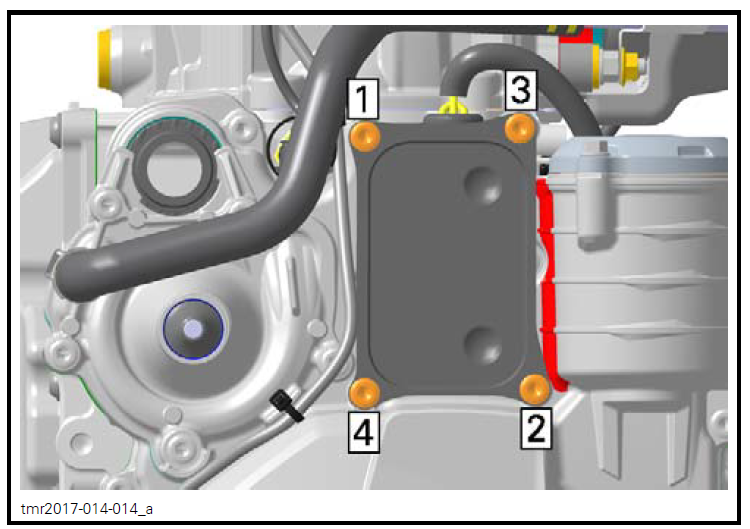

    BRP Oil Cooler Bolts

    BRP Oil Cooler Bolts

    Per the BRP Service Manual please follow the order sequence for tightening your oil cooler mounting bolts;

    ~ Step A: 44in/lbs +/- 5in/lbs
    ~ Step B: 80in/lbs +/- 9in/lbs

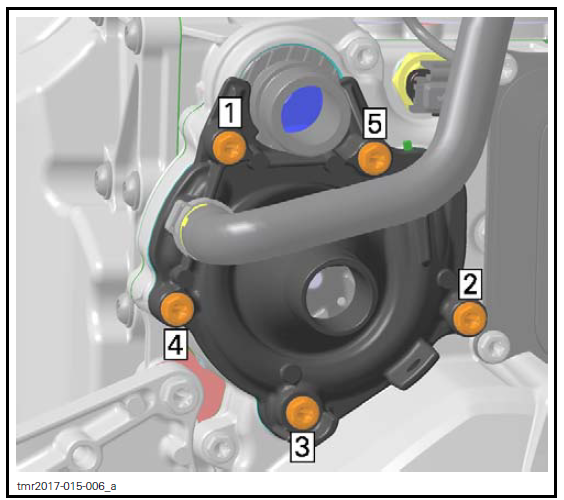

    BRP Water Pump Housing Bolts

    BRP Water Pump Housing Bolts

    Per the BRP Service Manual please follow the order sequence for tightening your water pump housing mounting bolts;

    ~ Step A: 80in/lbs +/- 9in/lbs

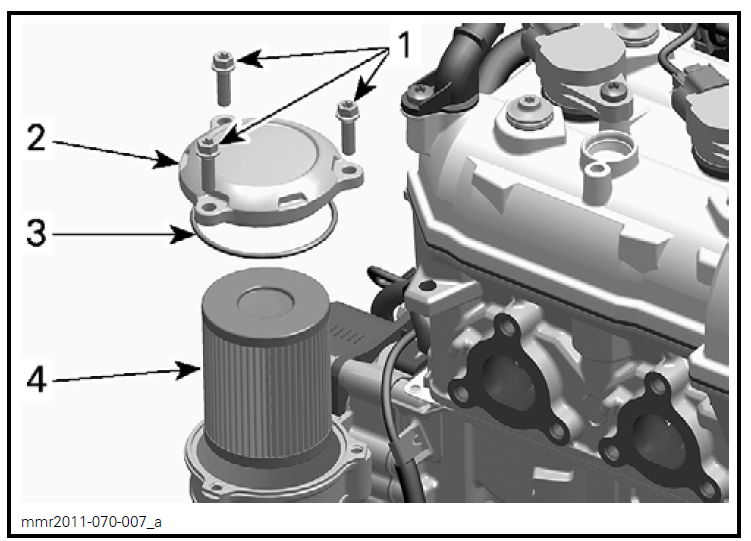

    BRP Oil Filter Cover Bolts

    BRP Oil Filter Cover Bolts

    Per the BRP Service Manual please follow the torque sequence for tightening your oil filter housing cover bolts (#1);

    ~ Step A: 89in/lbs +/- 9in/lbs

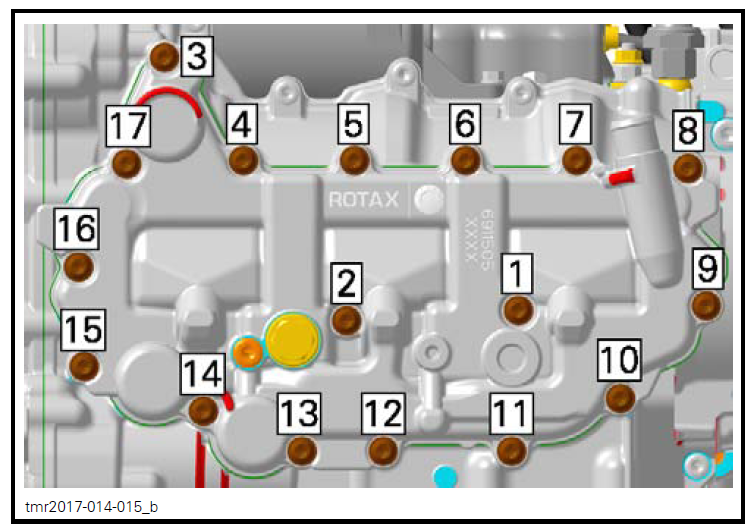

    BRP Oil Fill Cover Bolts

    BRP Oil Fill Cover Bolts

    Per the BRP Service Manual please follow the order sequence for tightening your oil fill side cover bolts when replacing the oil fill side cover gasket.

    ~ Step A: 44in/lbs +/- 5in/lbs (Start at #4, #12, and #17 and continue clockwise)
    ~ Step B: 80in/lbs +/- 9in/lbs (Start at #1 and continue clockwise)
