    WSRD CNC Ported Cylinder Head Packages | Can-Am X3 & Ski-Doo

    by WSRD
    Original price $2,389.00 - Original price $3,289.00
    Original price
    $2,389.00
    $2,389.00 - $3,289.00
    Current price $2,389.00
    Availability:
    In stock
    Availability:
    In stock
    Availability:
    In stock
    Choose a Cylinder Head Packages

    From mild to wild and everything in between, WSRD offers cylinder head and engine packages to suite your application and power needs!

    **All cylinder head package pricing includes a client supplied cylinder head core. Please ship WSRD your completely assembled cylinder head. All unused parts will be returned to you. When purchasing the V4 Cylinder Head please include your cylinder head core, camshaft housing assembly, and your supplied camshaft option (unless purchasing new from WSRD).**

    Please ship your cylinder head core to the following address:
    Whalen's Speed R&D - 161 Commercial Avenue, Paw Paw, MI 49079

    What's Included?

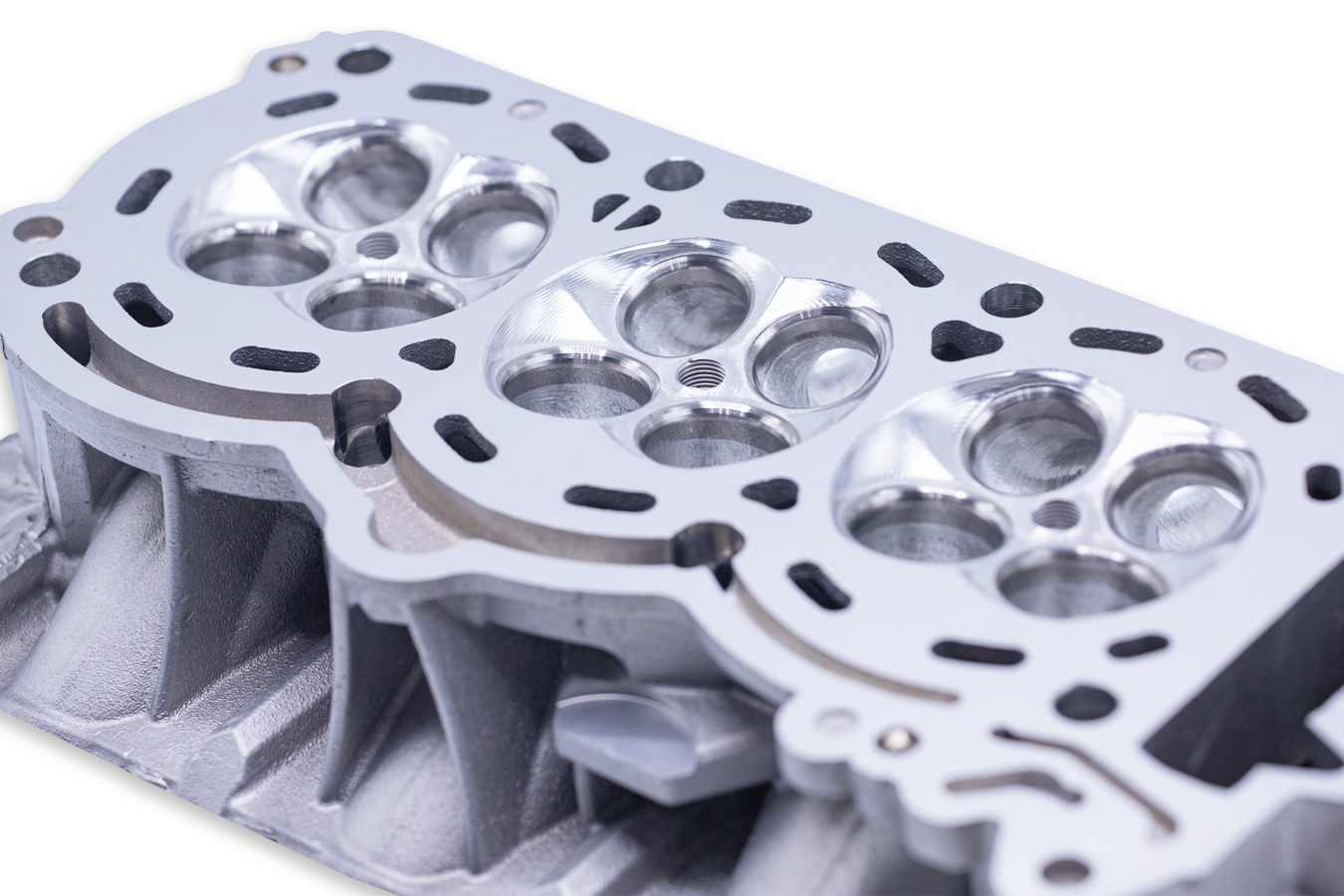

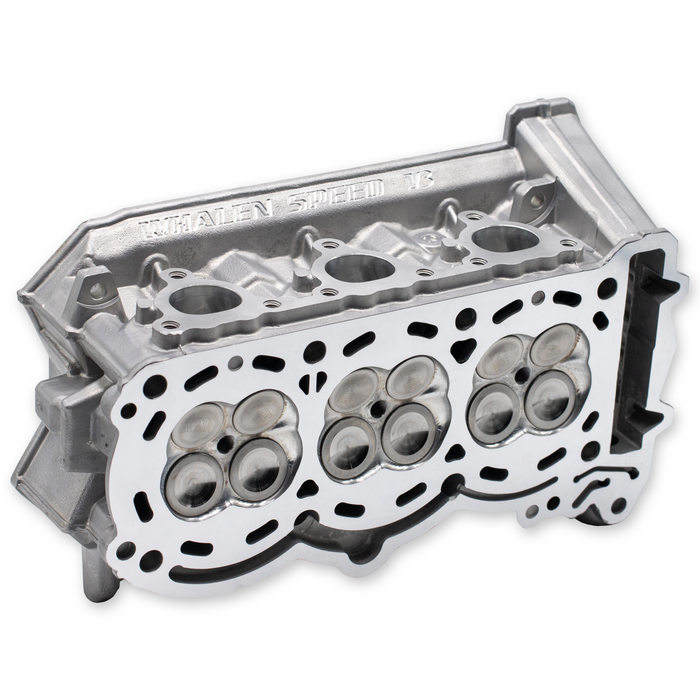

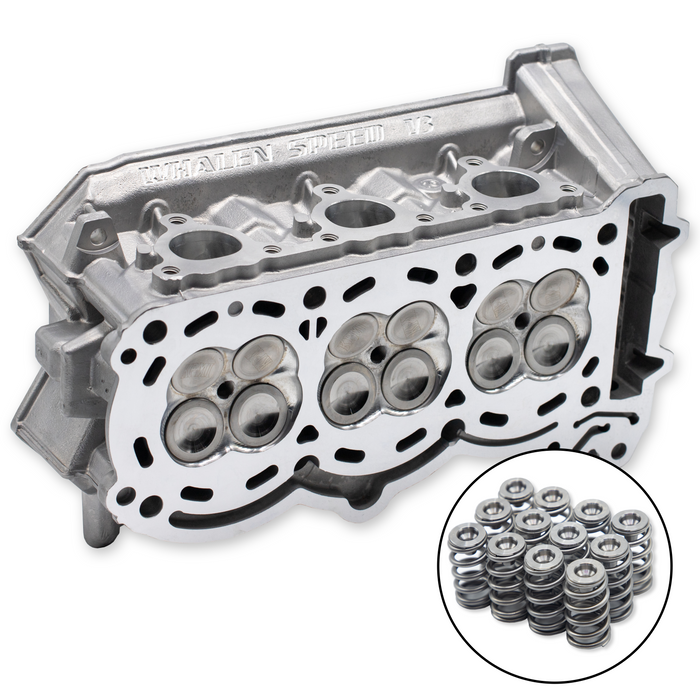

    • WSRD V3 CNC Cylinder Head Porting
    • WSRD +1mm Intake Valves - 30mm
    • WSRD +1mm Exhaust Valves - 26mm
    • WSRD "Duner" Valve Spring Set - Includes Stainless Steel Retainers
    • OEM BRP Valve Stem Seals
    • WSRD Decking Service
    • WSRD Valve Job Service
    • WSRD Vapor Hone Cleaning Service
    • WSRD Cylinder Head Assembly Service

    What's Included?

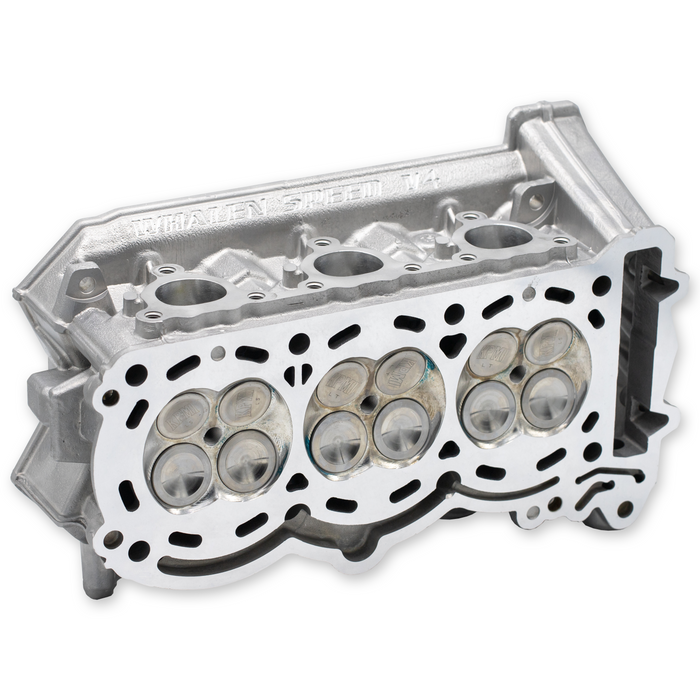

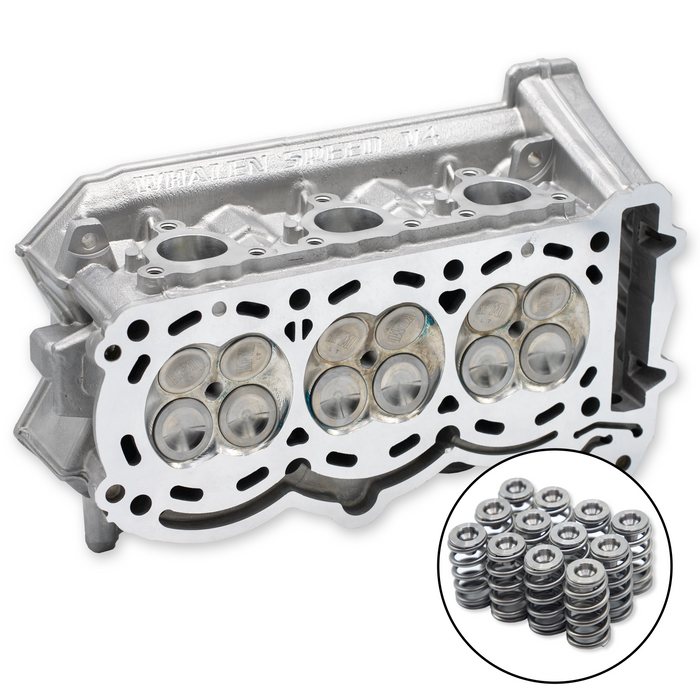

    • ~ WSRD V4 CNC Cylinder Head Porting
    • ~ WSRD +1mm Intake Valves - 30mm
    • ~ WSRD +1mm Exhaust Valves - 26mm
    • WSRD "Duner" Valve Spring Set - Includes Stainless Steel Retainers
    • WSRD Decking Service
    • WSRD Valve Job Service
    • WSRD Vapor Hone Cleaning Service
    • WSRD Cylinder Head Assembly Services

    What's Included?

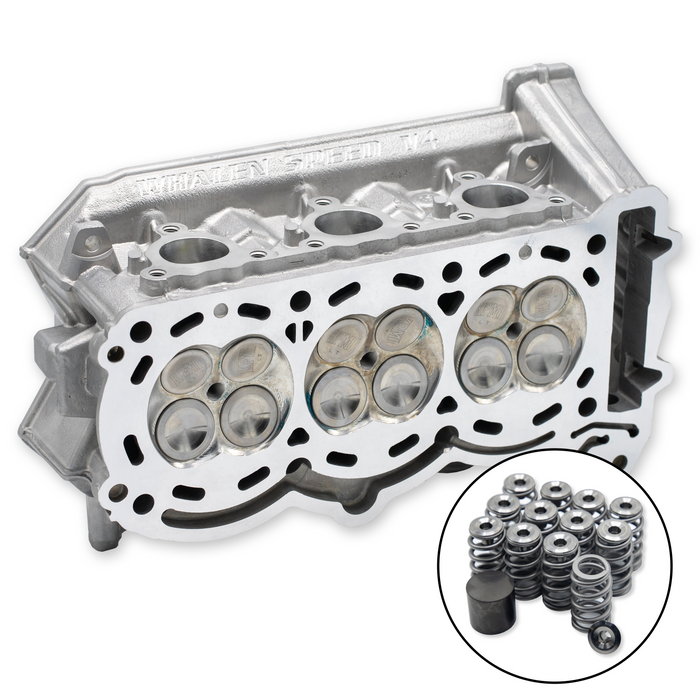

    • WSRD V4 CNC Cylinder Head Porting
    • WSRD +1mm Intake Valves - 30mm
    • WSRD +1mm Exhaust Valves - 26mm

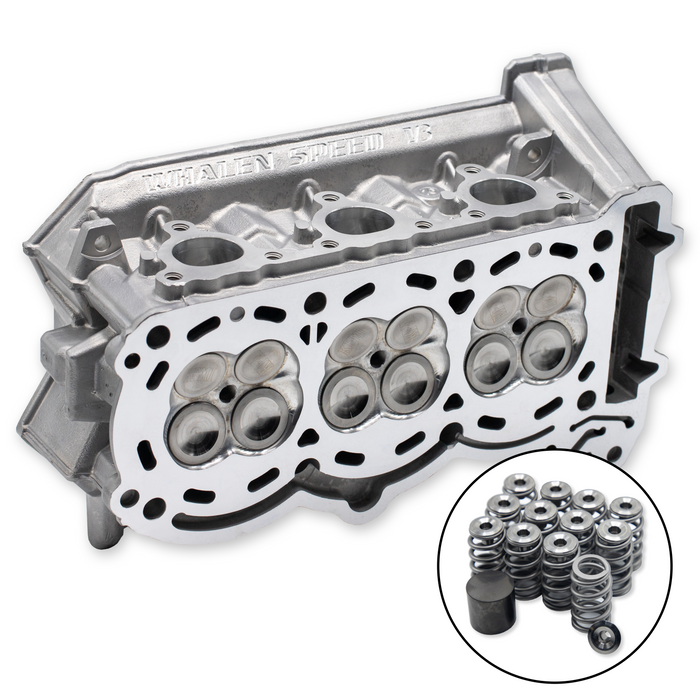

    • WSRD "Drag" Solid Bucket Conversion Kit
    • WSRD Decking Service
    • WSRD Valve Job Service
    • WSRD Vapor Hone Cleaning Service
    • WSRD Cylinder Head & Solid Bucket Assembly Services

    The WSRD Solid Bucket Conversion Valve Spring Kit includes; (12) WSRD Solid Lifter Buckets, (12) WSRD "Drag" Valve Springs, (12) WSRD Titanium Valve Spring Retainers, and (12) WSRD Valve Stem Seals.

    When sending Whalen's Speed R&D your cylinder head core, please include the camshaft option of your choice, unless purchasing new from Whalen's Speed R&D, and your camshaft housing assembly and hardware. The components are required to configurate the Solid Bucket Conversion Kit.

    Unmatched DEVELOPMENT WITH Record Setting Results

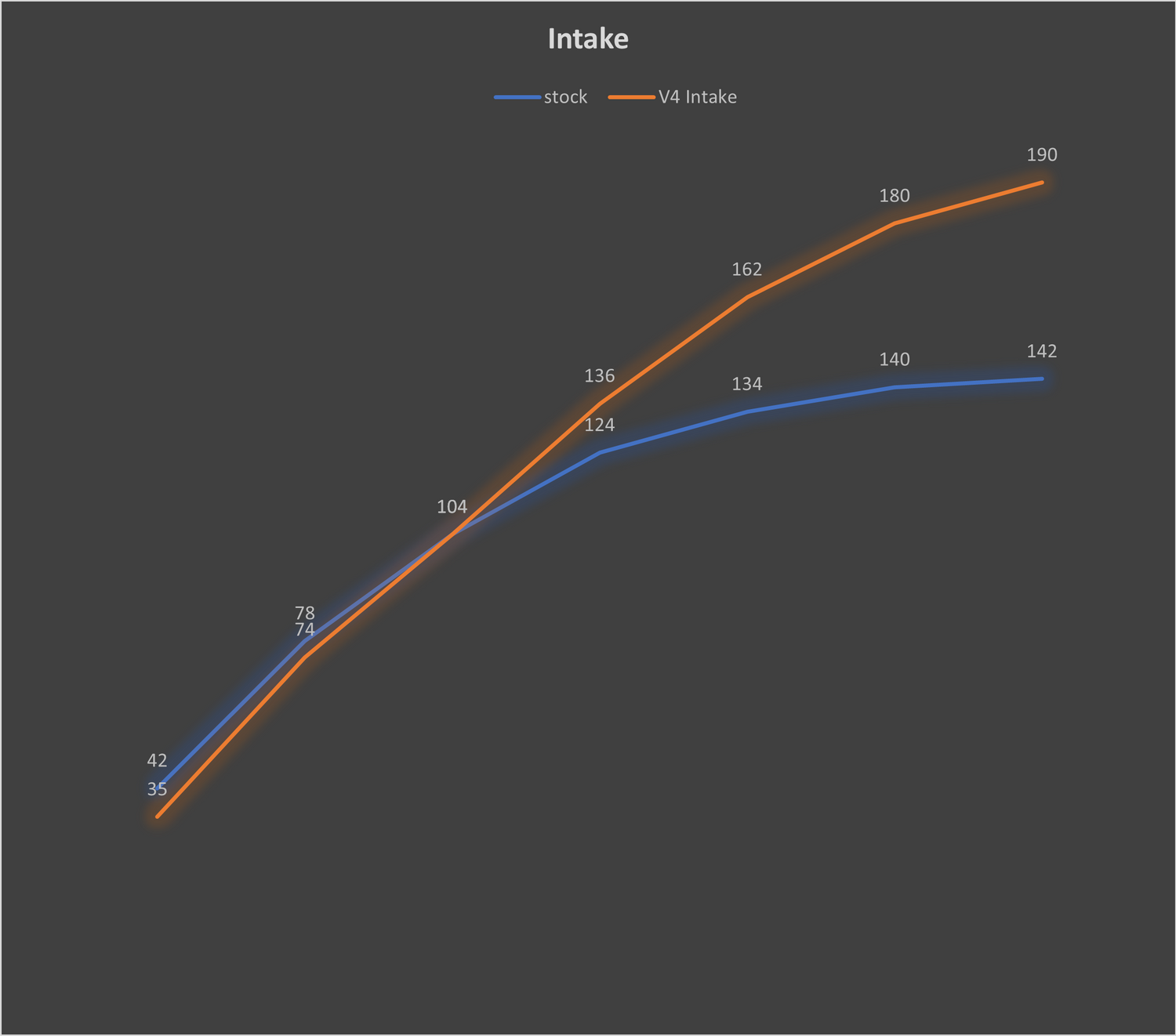

    Intake Port - Stock vs. WSRD

    Intake Port - Stock vs. WSRD

    Stock Port Average Air Flow: 109.1 CFM
    WSRD CNC Port Average Air Flow: 125.9 CFM

    The WSRD CNC Port sees an average of ~10% CFM increase over stock with a peak of ~40%.

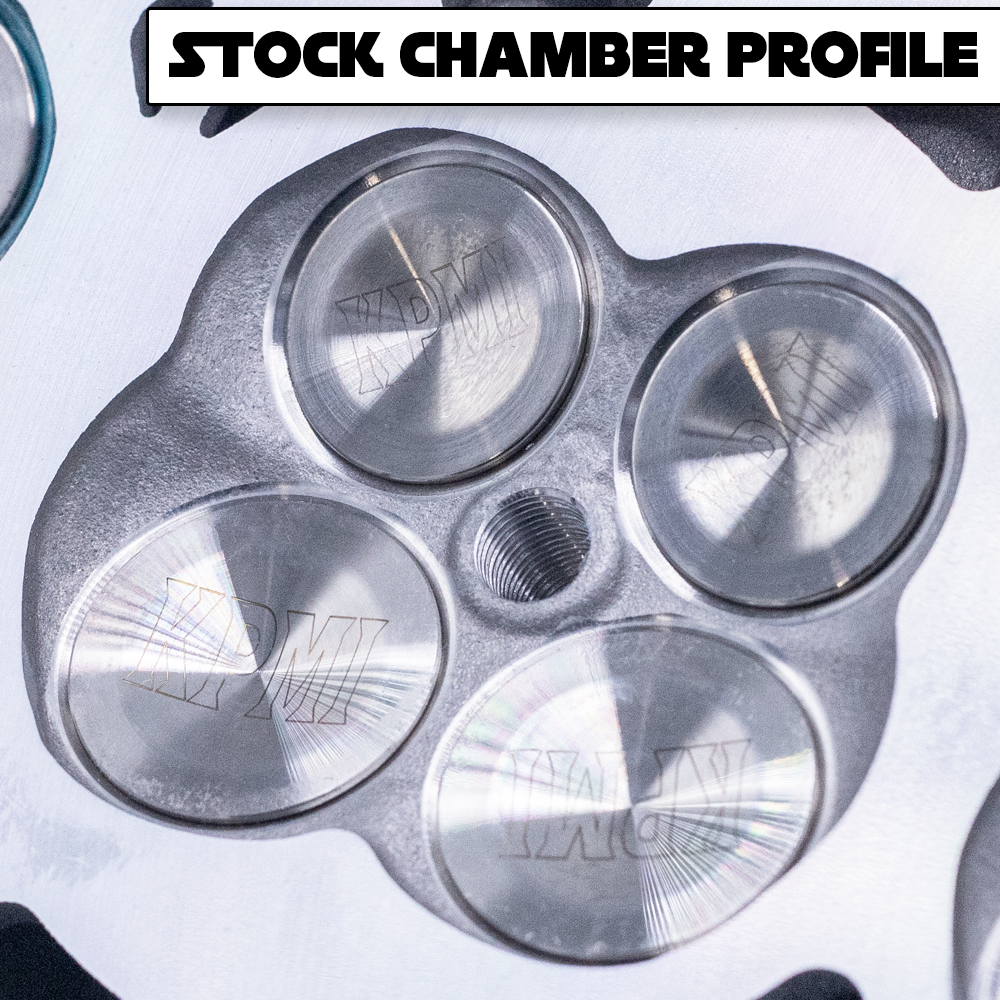

    Stock Combustion Chamber Volume: 19 CC

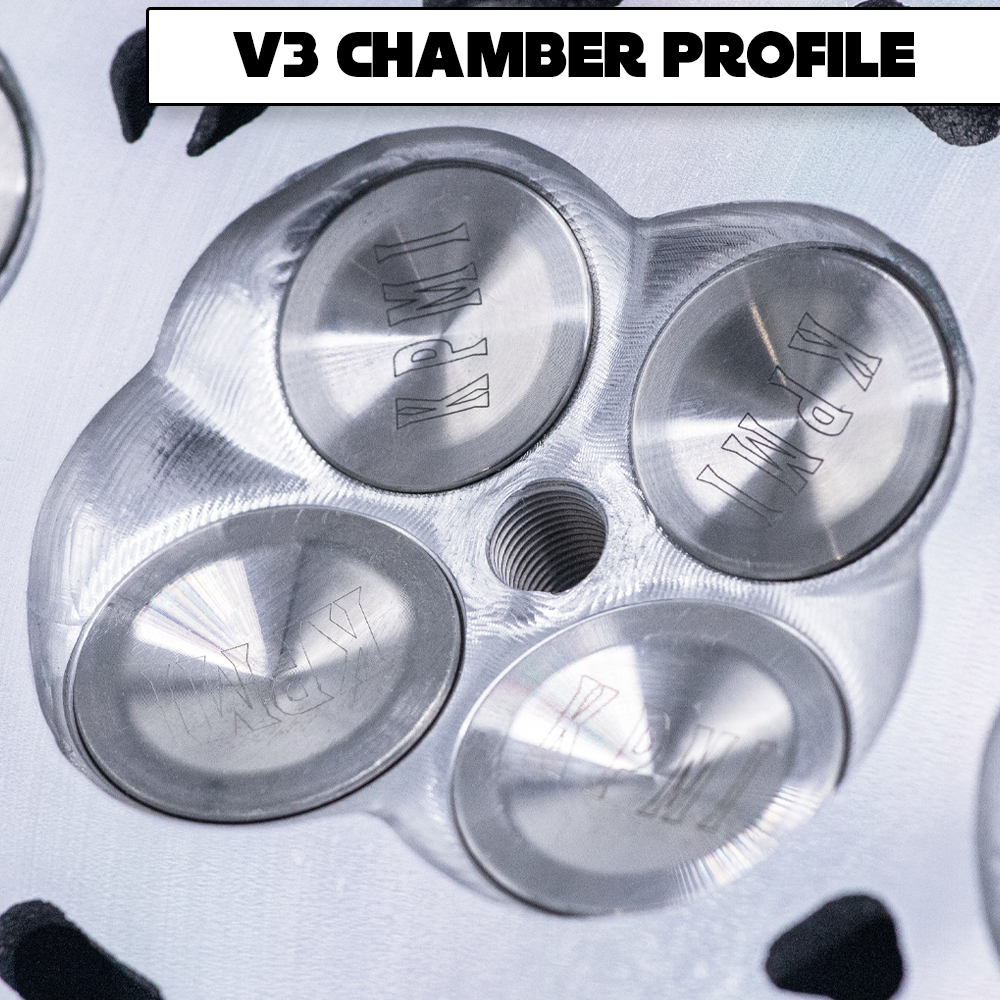

    WSRD V3 Combustion Chamber Volume: 19.5 CC

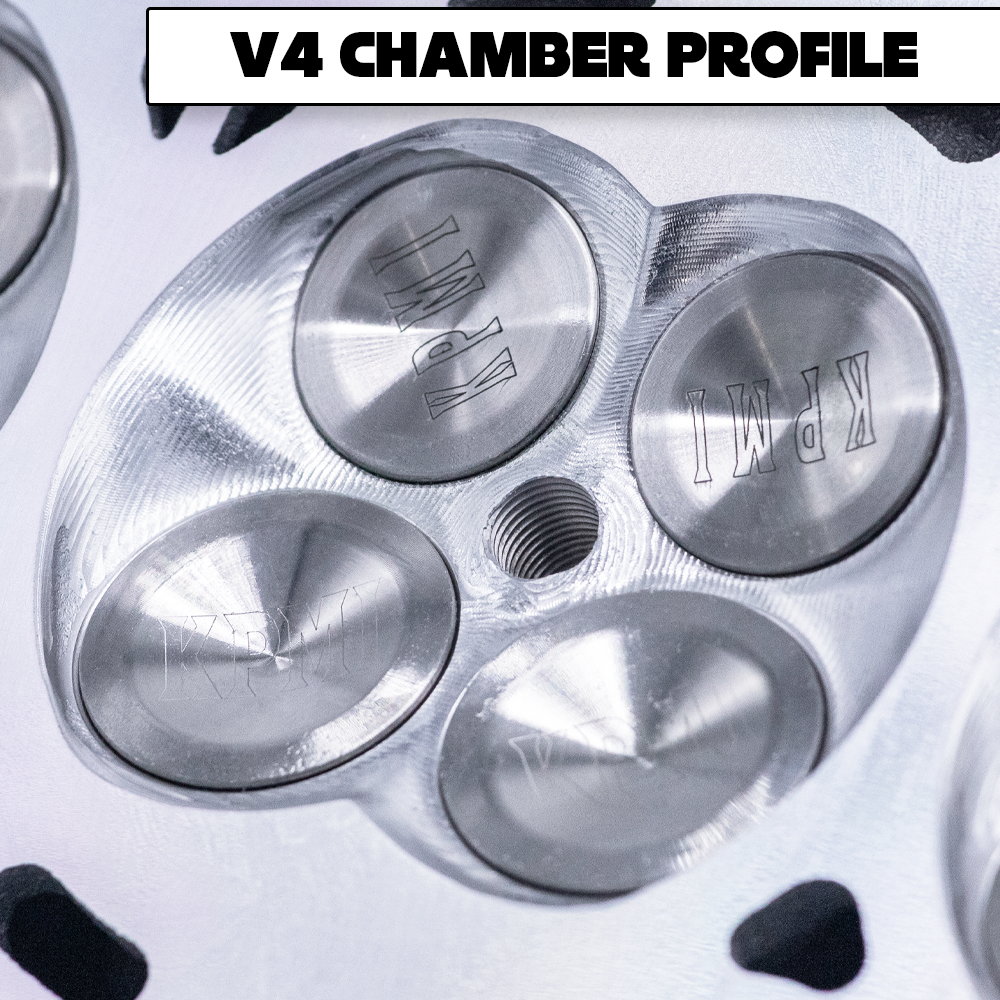

    WSRD V4 Combustion Chamber Volume: 20 CC

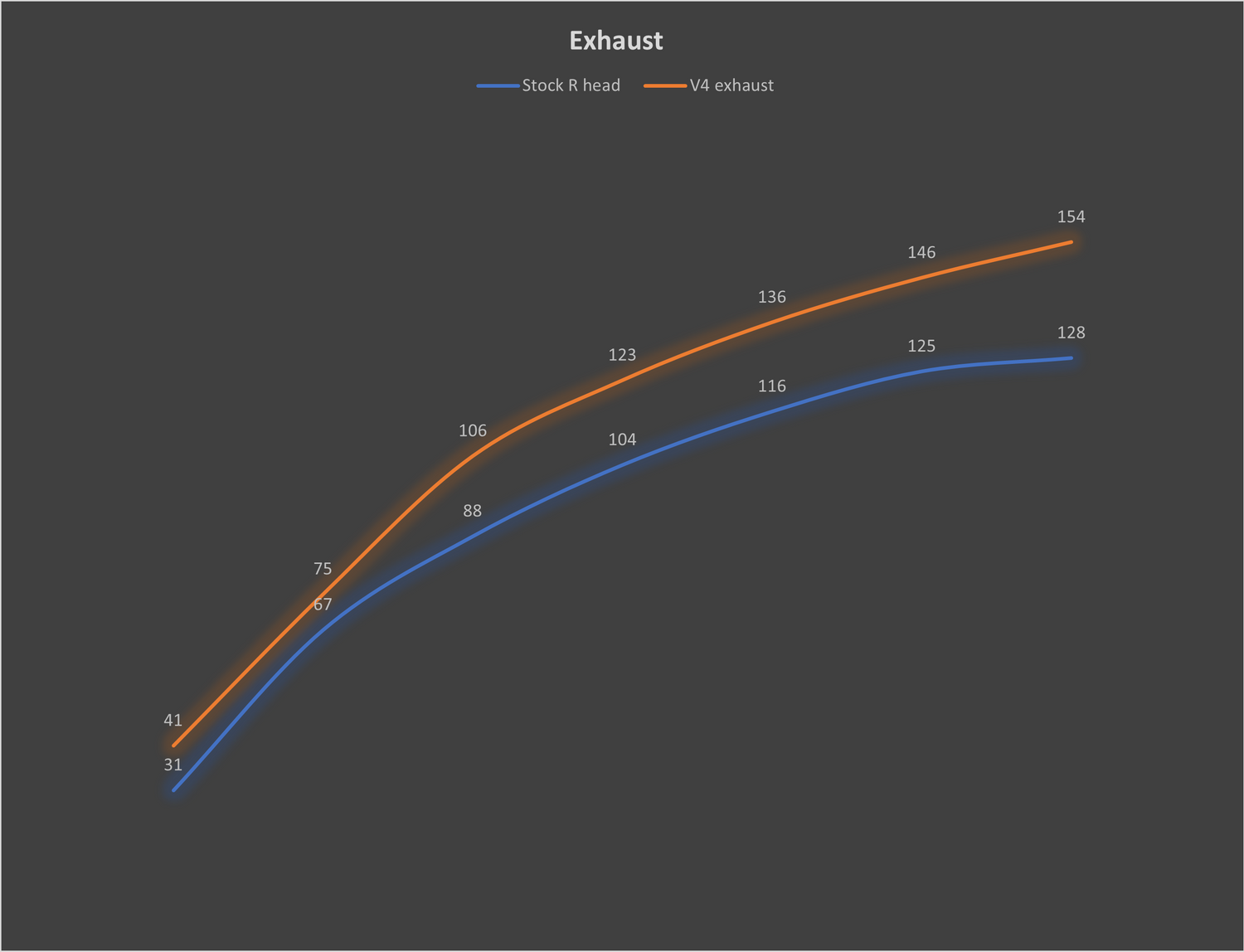

    Exhaust Port - Stock vs. WSRD

    Exhaust Port - Stock vs. WSRD

    Stock Port Average Air Flow: 94.1 CFM
    WSRD CNC Port Average Air Flow: 111.5 CFM

    The WSRD CNC Port sees an average of 18% CFM increase over stock with a peak of 20%.

    Stock Combustion Chamber Volume: 19 CC
    WSRD V3 Combustion Chamber Volume: 19.5 CC
    WSRD V4 Combustion Chamber Volume: 20 CC
