    WSRD Ultimate Solid Bucket Conversion Kit | Can-Am X3

    Original price $789.00 - Original price $789.00
    Original price
    $789.00 - $789.00
    Current price $789.00
    In stock

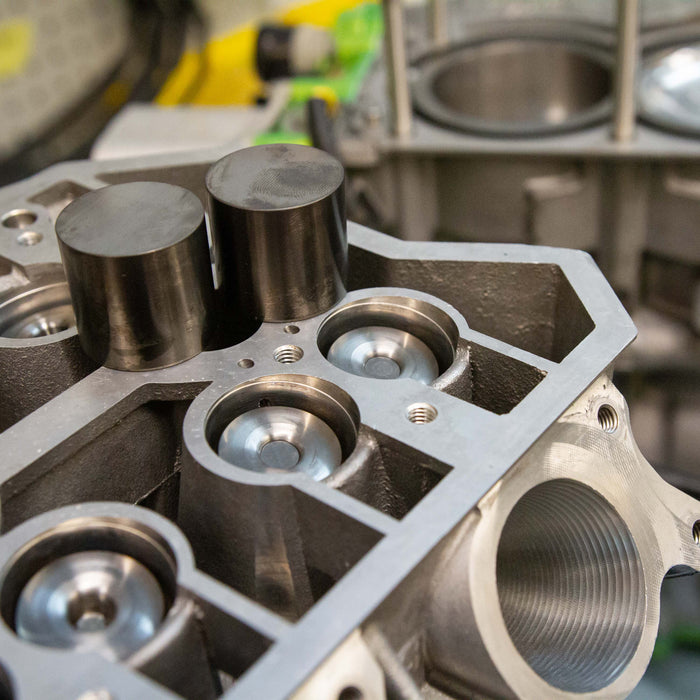

    The perfect solution for big power and high RPM! The WSRD Solid Bucket Conversion Kit is found in all WSRD CNC Ported "Drag" V4 Cylinder Head Packages.

    The WSRD Solid Bucket Conversion was major part of the engine package featured in D&M Racing's World's Quickest & Fastest UTV in the World! This machine now holds the AA/UTV, A/UTV and B/UTV ET 300' Record at 3.405 Seconds, and the B/UTV MPH Record at 93.41 MPH.

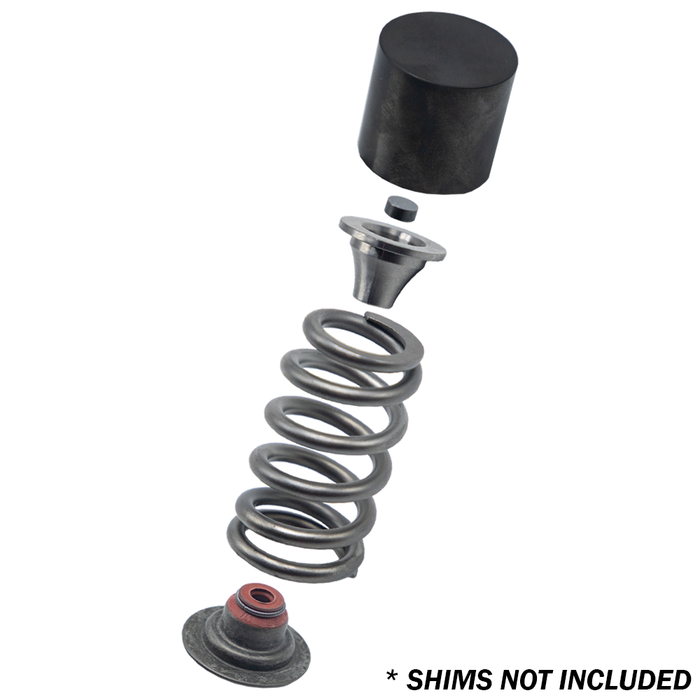

    What's Included?

    • (12) WSRD Titanium Valve Spring Retainers
    • (12) WSRD Spec Drag Valve Springs
    • (12) WSRD Valve Stem Seals
    • (12) WSRD Solid Buckets


    • Retains OEM Valve Seat/Valve Stem Seal (Included)
    • 72lbs of Seat Pressure @ 1.377" Installed Height
    • 155lbs @ 0.393" Lift
    • Coil Bind @ .540" Lift
    • Pacaloy Valve Spring
    • Titanium Retainer

    Valve Lash Specs:

    • Intake Camshaft: .005" +/- .001"
    • Exhaust Camshaft: .007" +/- .001"
    • Valve Shim Size: 7.48mm OD

    General practice is to setup your initial valve last specs on the bench top prior to bolting/torquing the cylinder head to engine block. Once the cylinder head is bolted/torque to the engine block please re-verify valve lash specs.
